Robust Wide-Area Transmission System
DJI 04 GROUND STATION
Reach Farther, Stay Aware

Built to overcome signal limits, DJI O4 Ground Station features a 12-antenna array and automatic multi-band selection [1]. The new Gateway Mode [2] connects directly to FlightHub 2 [3] to bypass deployment barriers, while Relay Mode [4] supports offline reach. Maintenance-free by design, it drives 24/7 unattended operations.

Flexible Deployment, Ultra-Long Transmission
Open Ecosystem, Flexible Integration
Durable Design, Smart Power
Gateway Mode [2], Wide Coverage
Relay Mode [4], Offline Reach
DJI Care Enterprise

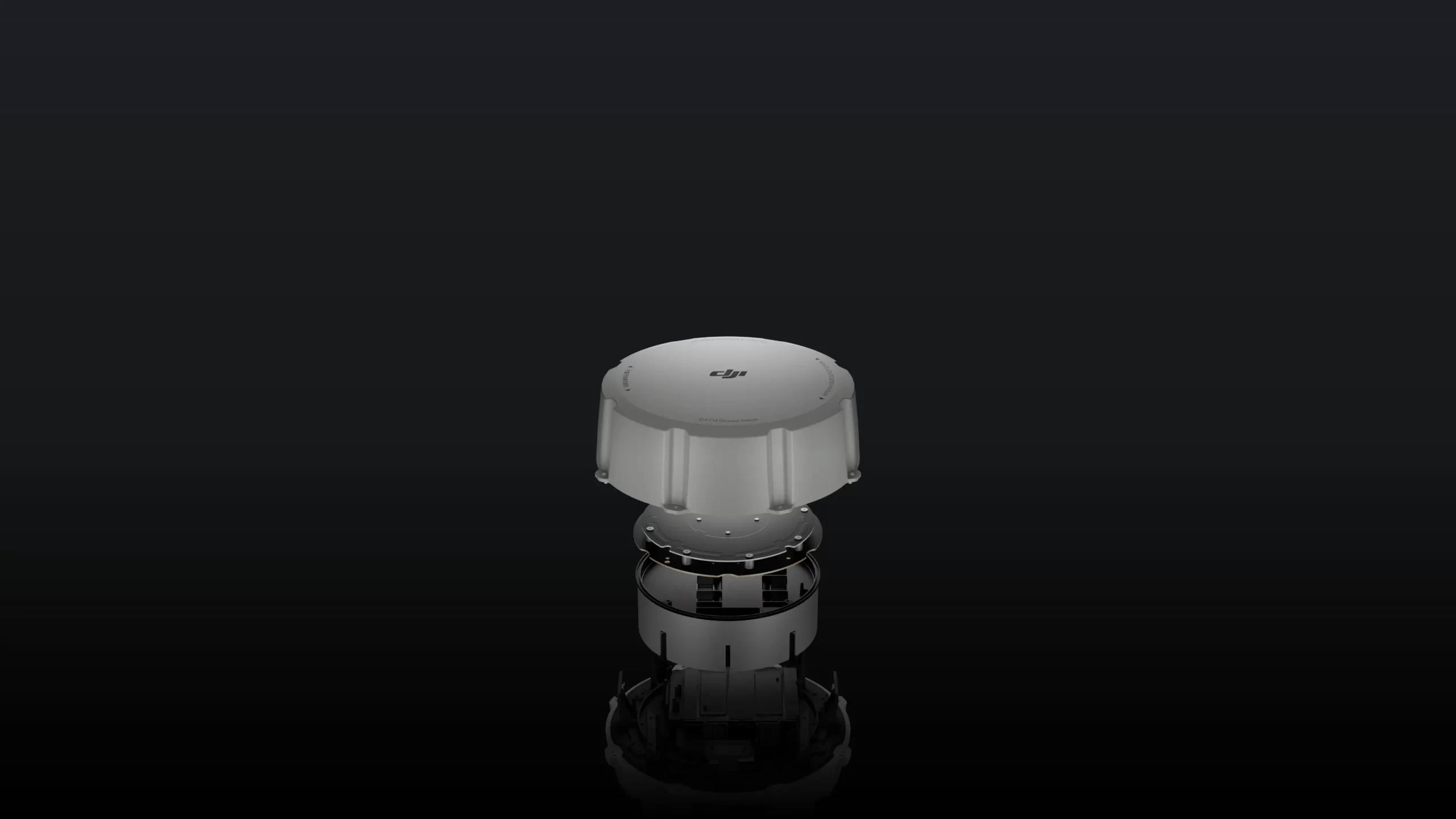

Advanced Hardware Robust Transmission

High-Performance RF Unit

The RF unit with high-output capabilities significantly boosts signal penetration and coverage, securing reliable links through dense urban obstructions. An optimized signal-to-noise ratio (SNR) further enhances receiver sensitivity, recovering usable signals even in complex electromagnetic environments.

Omnidirectional High-Gain Antenna

Using 12 internal and external antennas with horizontal and vertical polarization, O4 Ground Station delivers omnidirectional, high-gain coverage. It can continuously and stably capture signals regardless of the aircraft’s position, helping maintain a seamless communication link for wide-area operations.

Automatic Multi-band Selection[1]

To navigate congested urban RF environments, O4 Ground Station automatically shifts across sub2G, 2.4 GHz, 5.2 GHz, 5.8 GHz, and other bands [1] to help bypass interference. This delivers a crisp, stutter-free video feed, and when paired with DJI Matrice 400, supports a transmission range of up to 40 km [5].

5-System, 19-Frequency GNSS

An integrated high-gain RTK module tracks 19 frequencies across five global satellite systems. Even in challenging, semi-obstructed environments like urban canyons or dense canopies, it rapidly acquires satellite signals. This provides continuous, centimeter-level positioning data, safeguarding flight operations.

Gateway-Mode-2

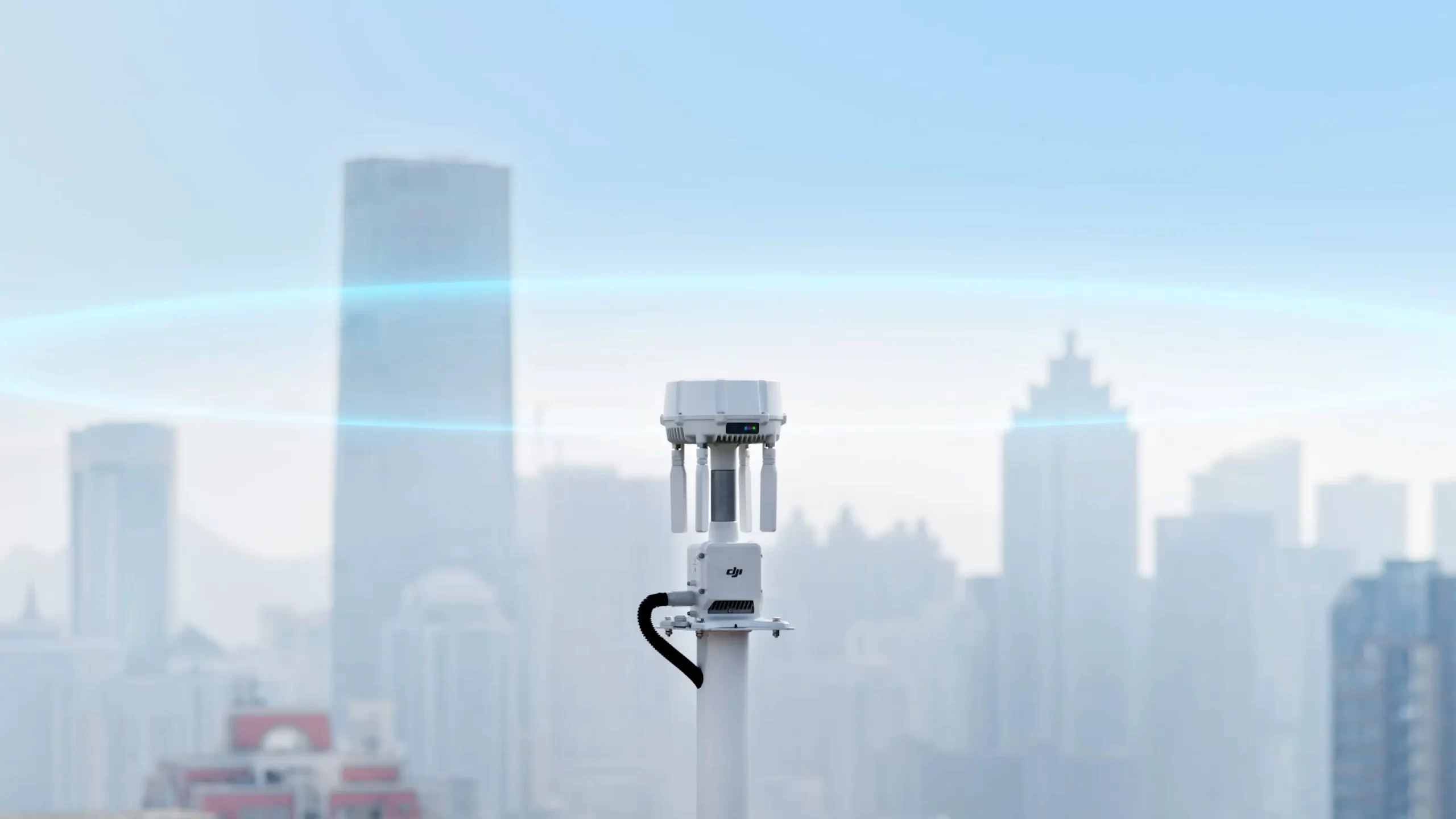

Gateway Mode [2]

Direct Network Connectivity

In Gateway Mode [2], O4 Ground Station connects directly to DJI FlightHub 2 [3] via Ethernet or the DJI Cellular Dongle 2 [6], delivering low-latency, high-bandwidth video feeds. This frees the station from DJI Dock 3’s proximity constraints, allowing it to extend coverage up to 30 km [7].

Signal Map for Precise Deployment [8]

After a flight, FlightHub 2 utilizes flight data to generate a Signal Map [8] that visually highlights weak coverage zones. This helps operators position ground stations more precisely and reinforce communication links, enhancing overall flight safety.

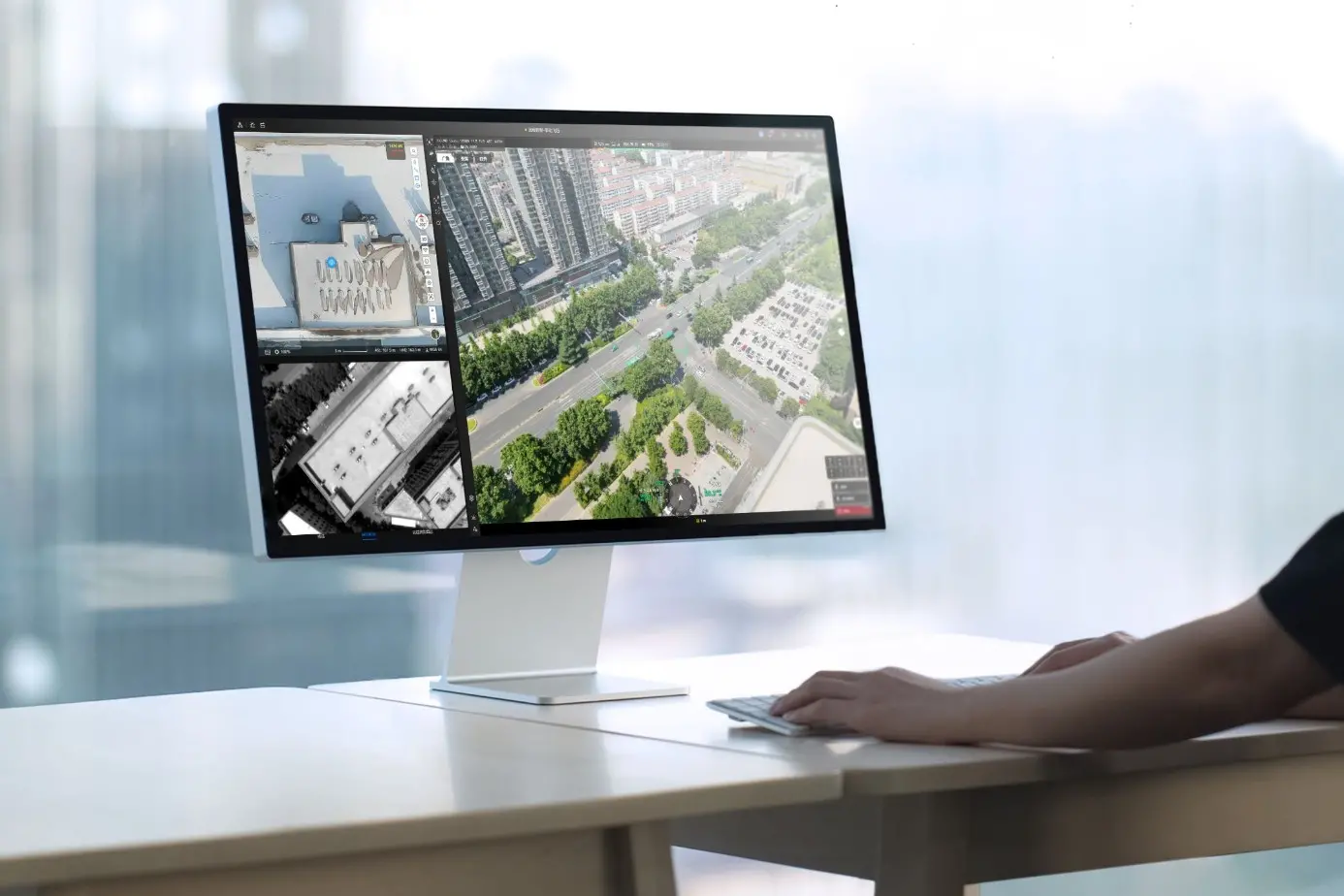

Virtual Cockpit for Agile Control [8]

In Gateway Mode, operators can use the FlightHub 2 Virtual Cockpit [8] to remotely control the aircraft. Within the ground station’s coverage area, pilots can manually override preset routes, enabling a flexible and fast response to multi-point task requirements.

Drone System

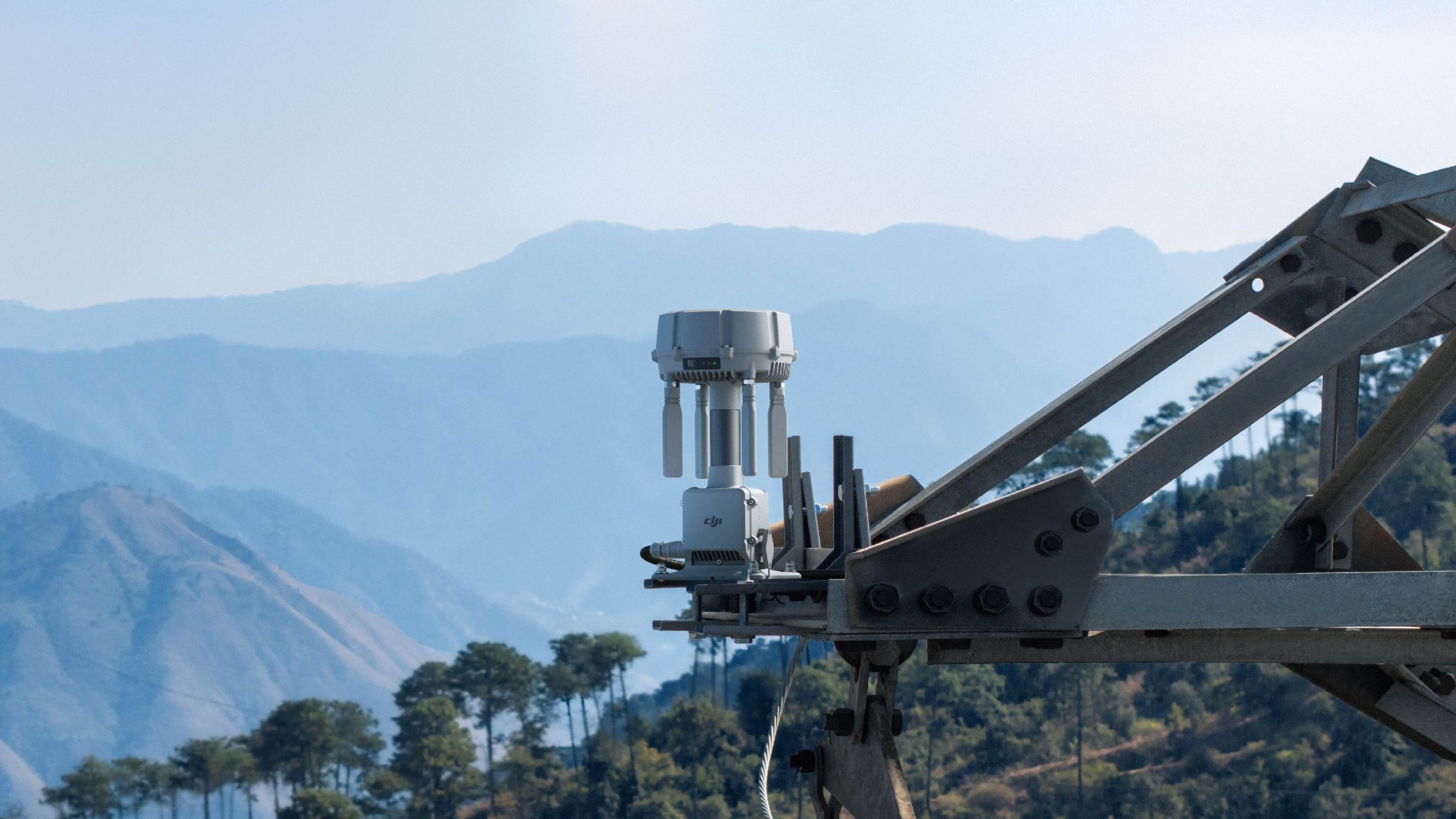

Relay Mode [4], Offline Reach

High-Point Setup to Clear Obstructions

O4 Ground Station inherits the functions of the D-RTK 3 Relay Fixed Deployment Version. In offline areas such as valleys or urban environments with severe signal obstruction, operators can switch to Relay Mode [4] and position the station at a high point to extend aircraft video transmission range.

Multi-Device Rotation [9] for Higher Utilization

Remote controllers or DJI Docks [9] within signal range can remotely scan and connect to O4 Ground Station [10]. This enables fast turnarounds, as a single station can service different aircraft sequentially and improve overall hardware utilization.

DJI FlightHub 2 Intelligent Features

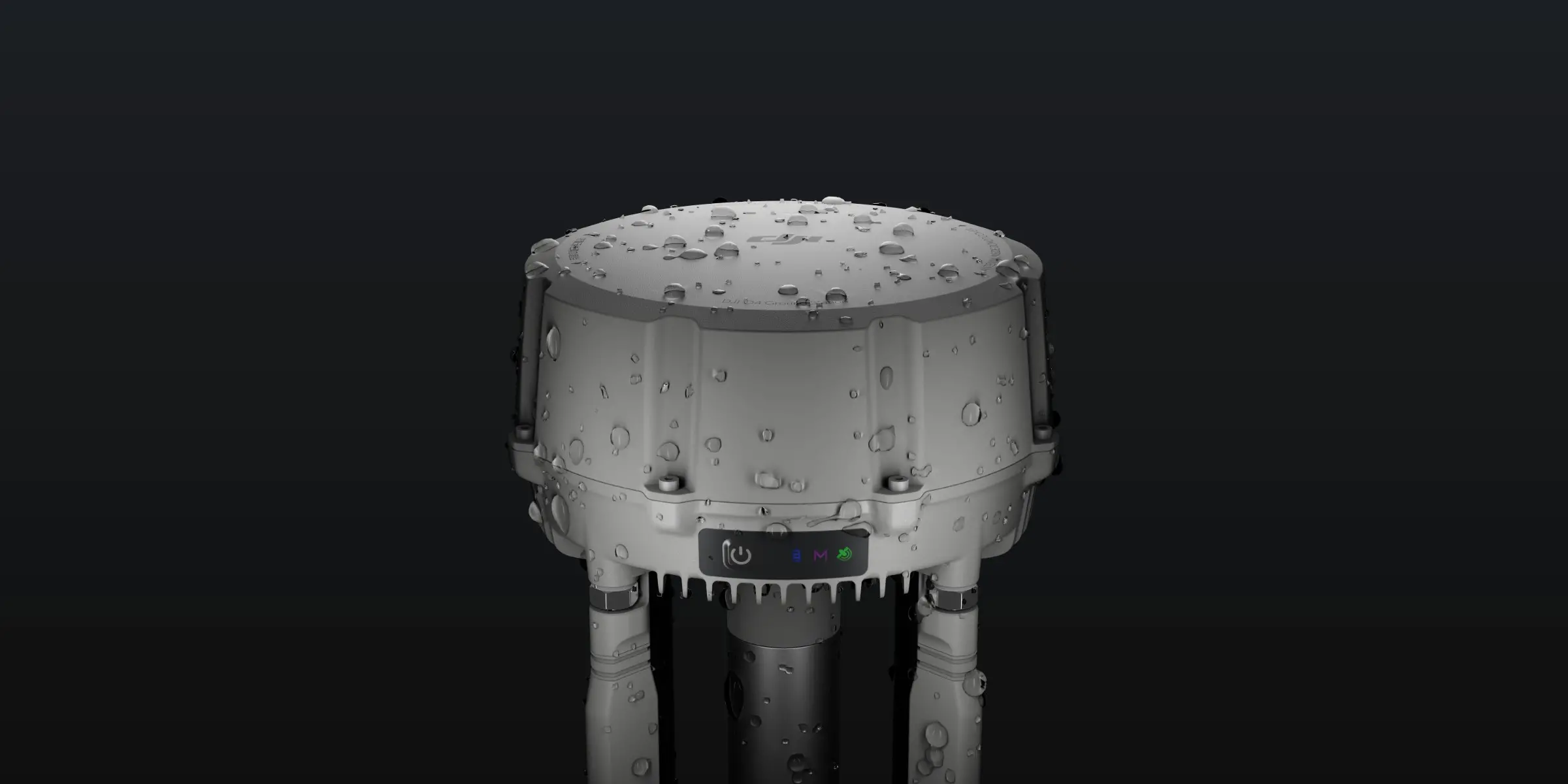

All-Weather Reliability Lightning Protection

An IP67 rating [11] protects against water and dust, while O4 Ground Station operates reliably in temperatures from -40° to 55° C (-40° to 131° F) [12]. This robust build supports continuous, unattended operations across harsh outdoor climates.

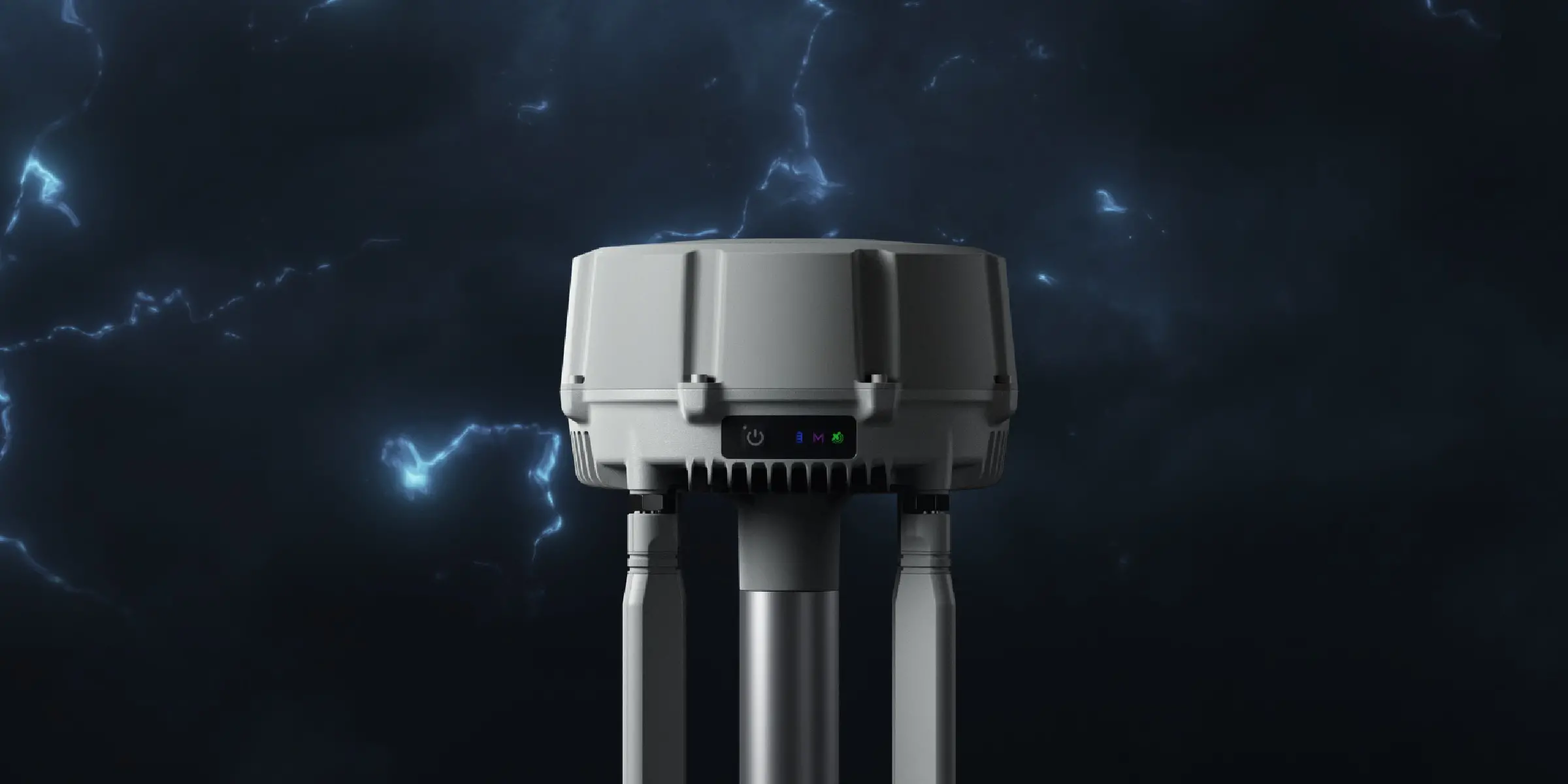

Proprietary lightning protection components and a grounding design meet the EN/IEC 61643-21 Category C standard. This helps mitigate the risk of lightning damage when deploying the station at elevated outdoor locations such as mountains or transmission towers [4].

Fanless passive cooling and a self-recovery mechanism allow the station to automatically resume operation after power outages or software anomalies. This maintenance-free design reduces the need for manual on-site reboots and helps cut troubleshooting trips and operational costs.

In Gateway Mode, O4 Ground Station features smart power management. It automatically hibernates when no aircraft is connected, drawing only 7 W on standby [14]. For off-grid environments, the station connects to DJI Power solar solutions or third-party photovoltaic systems [15], supporting long-term operations in remote areas.

Open Ecosystem, Flexible Integration

O4 Ground Station integrates up to four standard IP cameras. Using ONVIF and GB/T 28181 protocols, it streams live video directly to DJI FlightHub 2 and synchronizes native camera alerts, such as displacement detection. FlightHub 2 also enables remote PTZ control (Pan/Tilt/Zoom) of connected cameras, giving operators a centralized, comprehensive view of the operational area.

The new MQTT-based ESDK 2.0 and Cloud API streamline integration, empowering developers to build custom, industry-specific solutions. Via the MQTT protocol, the station can connect to third-party Remote ID or ADS-B receivers. This delivers real-time awareness of nearby unmanned and manned aircraft, proactively safeguarding the airspace around DJI Dock 3.

Supported Models

Gateway Mode:

  • DJI Dock 3

Relay Mode*:

  • DJI Dock 3
  • DJI Matrice 400
  • DJI Matrice 4E
  • DJI Matrice 4T
  • DJI Matrice 4D (DJI RC Plus 2 Enterprise)
  • DJI Matrice 4TD (DJI RC Plus 2 Enterprise)
  • DJI FlyCart 100

* This feature is unavailable in countries or regions without 5GHz frequency support, such as Japan and Kazakhstan. Check local laws and regulations for more information.
