Earthwork

Painpoints

Absence of frequently updated stockpile measurements can lead to project delays and inaccurate resources supply.
Inefficient walk-based methods results on higher labor cost and time.
Stockpile manual measurements accuracy can be compromised by human errors.

Advantages

Generate updated Stockpile Measurement with Point Cloud Data at any time.
Cut field work time with efficient drone-based data collection.
Ensure data quality and consistency with repeatable mission flights.

Portable Drone Surveying & Mapping Solution

The DJI Matrice 4E is a portable surveying and mapping drone suitable for single-pilot operations. Paired with DJI Terra or your preferred 3rd Party Earthwork Software, it can generate accurate Point Clouds and 3D models to measure stockpile volumes.

Drone Platform

DJI Matrice 4E

Weight: 1219 g (with propellers)

Max Flight Time (without wind): 49 minutes

Environment Adaptability: Max takeoff altitude 6000 m, max wind speed resistance 12 m/s

Sensing System: Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft

Mechanical Shutter Speed: 2-1/2000 s, minimum photo interval 0.5 s

Wide-Angle Camera: 4/3-inch CMOS, 20MP effective pixels

Medium Tele Camera: 1/1.3-inch CMOS, 48MP effective pixels

Telephoto Camera: 1/1.5-inch CMOS, 48MP effective pixels

Laser Rangefinding: 1800m measurement range (1 Hz) @20% reflectivity target

Learn more ›

Payload And Software

DJI Pilot 2

Ground control

DJI Terra

Modeling and flight mission plan

Learn more ›

Workflow

Data Collection:
- – Design a 2D map mission for consistent orthomosaic data acquisition.
Data Processing:
- – Utilize DJI Terra for processing, generating a high-accuracy dense Point Cloud from the collected data.
Data Analysis:
- – Measure stockpile volumes efficiently with DJI Terra. Alternatively, import the Point Cloud data directly into third-party software for comprehensive cut and fill analysis.

Automated Routine Stockpile Measurement Solution

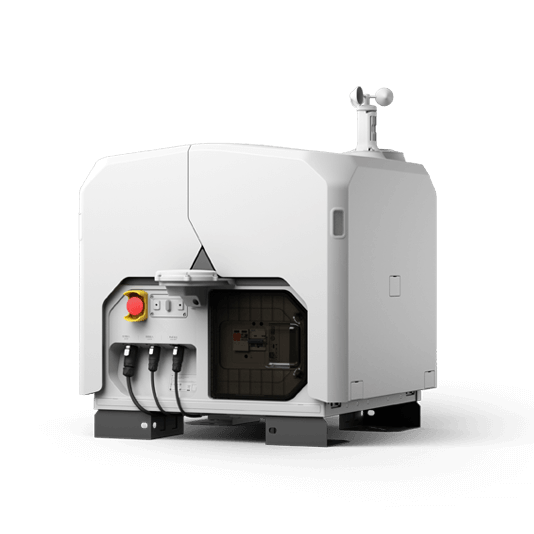

The DJI Dock 3 allows you to automate recurrent stockpile measurement task effortlessly. Schedule remote data collection flights and upload collected data to DJI FlightHub 2 or your preferred Earthwork Software for timely project progress checks.
