DJI Matrice 4TD Standalone Version

Overview

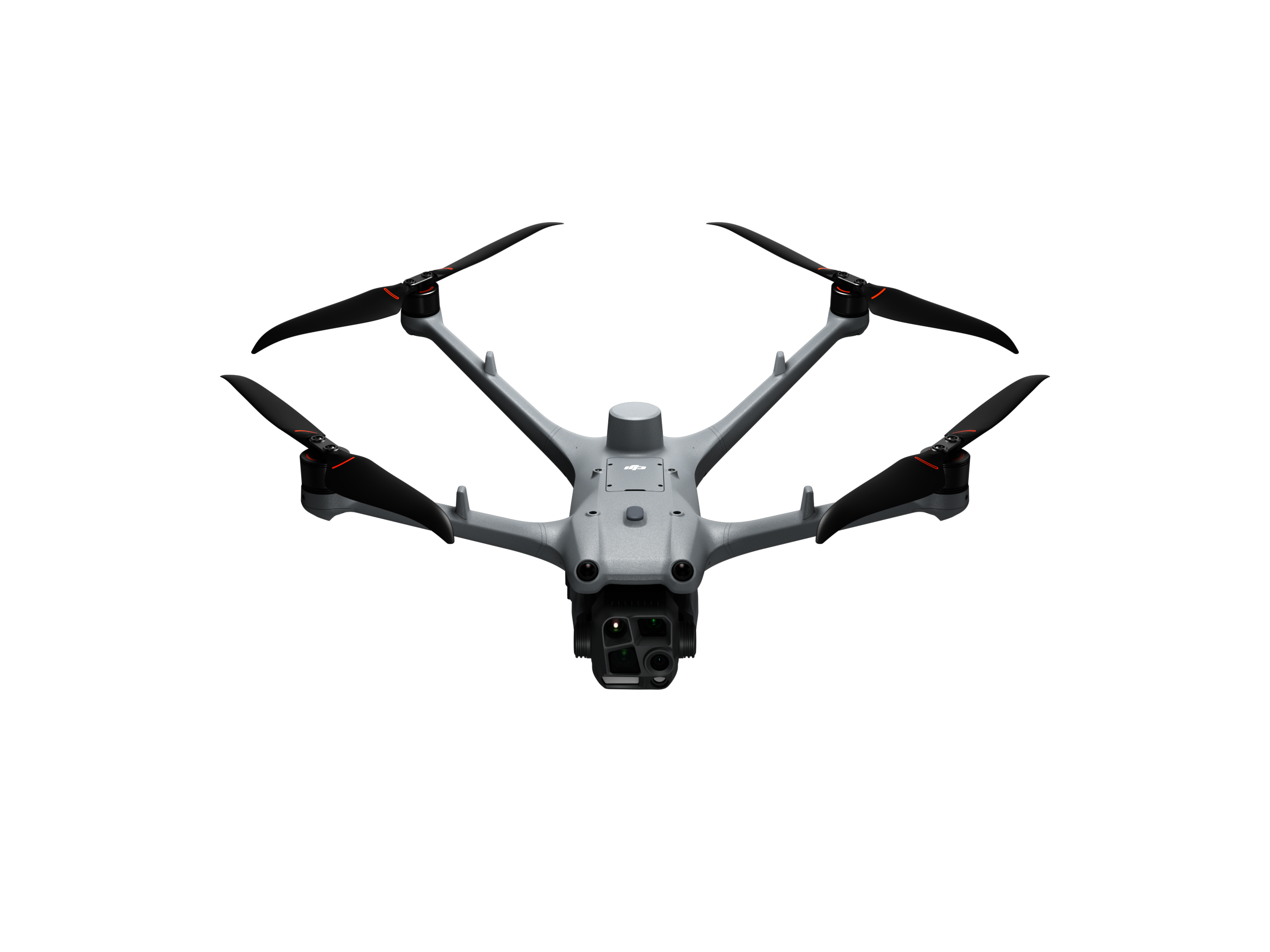

The DJI Matrice 4TD Standalone is a robust thermal drone designed for public safety, inspection, and emergency response missions. It has a 640×512 thermal camera, three 48MP vision cameras, a laser rangefinder, and a near-infrared spotlight, all within a compact, weather-resistant framework. The M4TD offers up to 54 minutes of flight duration and features DJI’s sophisticated obstacle detection, providing accurate thermal and optical intelligence in challenging conditions. Optimized for independent operations, it combines effortlessly with DJI RC Plus 2 and facilitates sophisticated workflows via DJI FlightHub 2.

Master All Environments

Master All Environments

Flexible Deployment, Ultra-Long Transmission

Flexible Deployment, Ultra-Long Transmission

High-Performance Drones

High-Performance Drones

Efficient Operation with Intelligent Features

Efficient Operation with Intelligent Features

Enhanced Experience with Advanced Software

Enhanced Experience with Advanced Software

Secure and Compliant, Open Ecosystem

Secure and Compliant, Open Ecosystem

Aerosmart Drones | All types drones

Heat Resistant

Built to withstand extreme heat, DJI Dock 3 operates and charges seamlessly even in temperatures soaring up to 50° C (122° F), ensuring efficient operations.

Cold Resistant

Perform critical tasks reliably despite frigid temperatures in environments where temperatures can plunge below -20°C (-4°F). After preheating, it can operate stably in harsh environments as low as -30° C (-22° F).

Wind Resistance

Both Matrice 4D and 4TD demonstrate remarkable flight performance. In winds as strong as 12 m/s, they can achieve stable takeoff and landing, and stay in the air for up to 32 minutes.

Rugged and Dependable

Dock 3's design safeguards its internal systems from external conditions by encapsulating electronic components, allowing for seamless operations even in harsh environments.

Low-Noise and Anti-Ice Propellers

Standard equipped with low-noise anti-ice propellers, the Matrice 4D and 4TD drones can maintain stable flight even in freezing rain. The silent design reduces noise during operations.
Aerosmart Drones | All types drones

Fixed-Mounted Deployment

u003cpu003eThe new D-RTK 3 Relay Fixed Deployment Version offers superior anti-interference performance for video transmission and satellite acquisition. Installing it at elevated locations can effectively address RTK and video transmission signal issues caused by obstructions, extending the maximum transmission distance to 25 km. This capability allows for flexible site selection of Dock 3 based on actual operational needs.u003c/pu003en

Near High-Rise Buildings

u003cpu003eInstalling the D-RTK 3 Relay on rooftops can significantly enhance signal quality, allowing Dock 3 to be deployed next to high-rise buildings or substation walls.u003c/pu003en

Near Communication Towers

u003cpu003eDeploying the D-RTK 3 Relay on a nearby communication tower can significantly enhance signal quality during Dock 3 operations, ensuring safe takeoffs and landings even in environments with interferences from the communication tower.u003c/pu003en

Mobile Vehicle-Mounted Deployment

u003cpu003eDJI Dock 3 is DJI’s first Dock to support mobile vehicle-mounted deployment. Optimized for this purpose, the Dock’s overall structure, components, and air conditioning have undergone vehicle vibration testing, with new features such as horizontal calibration and cloud-based dock location calibration. For emergency operations or long-distance inspections, using DJI Dock 3 Vehicle-Mounted Gimbal Mount for mobile deployment provides a convenient solution when fixed deployment is impractical in temporary scenarios.u003c/pu003en

Aerosmart Drones | All types drones

DJI Matrice 4D

u003cpu003eu003cstrongu003eWide-Angle Camera:u003c/strongu003eu003cbr /u003en4/3 CMOSu003cbr /u003en20MP Effective Pixelsu003cbr /u003enf/2.8-f/11u003cbr /u003en24mm Format Equivalentu003cbr /u003enMechanical Shutteru003c/pu003enu003cpu003eu003cstrongu003eMedium Tele Camera:u003c/strongu003eu003cbr /u003en1/1.3-inch CMOSu003cbr /u003en48MP Effective Pixelsu003cbr /u003enf/2.8u003cbr /u003en70mm Format Equivalentu003c/pu003enu003cpu003eu003cstrongu003eTele Camera:u003c/strongu003eu003cbr /u003en1/1.5-inch CMOSu003cbr /u003en48MP Effective Pixelsu003cbr /u003enf/2.8u003cbr /u003en168mm Format Equivalentu003c/pu003enu003cpu003eu003cstrongu003eLaser Range Finder:u003c/strongu003eu003cbr /u003enMeasurement Range: 1800 m (1 Hz);u003cbr /u003enOblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)u003cbr /u003enBlind Zone: 1 mu003cbr /u003enRange Accuracy (m): ± (0.2 + 0.0015 × D)u003c/pu003en

DJI Matrice 4TD

u003cpu003eu003cstrongu003eWide-Angle Camera:u003c/strongu003eu003cbr /u003en1/1.3-inch CMOSu003cbr /u003en48MP Effective Pixelsu003cbr /u003enf/1.7u003cbr /u003en24mm Format Equivalentu003c/pu003enu003cpu003eu003cstrongu003eMedium Tele Camera:u003c/strongu003eu003cbr /u003en1/1.3-inch CMOSu003cbr /u003en48MP Effective Pixelsu003cbr /u003enf/2.8u003cbr /u003en70mm Format Equivalentu003c/pu003enu003cpu003eu003cstrongu003eTele Camera:u003c/strongu003eu003cbr /u003en1/1.5-inch CMOSu003cbr /u003en48MP Effective Pixelsu003cbr /u003enf/2.8u003cbr /u003en168mm Format Equivalentu003c/pu003enu003cpu003eu003cstrongu003eLaser Range Finder:u003c/strongu003eu003cbr /u003enMeasurement Range: 1800 m (1 Hz);u003cbr /u003enOblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)u003cbr /u003enBlind Zone: 1 mu003cbr /u003enRange Accuracy (m): ± (0.2 + 0.0015 × D)u003c/pu003enu003cpu003eu003cstrongu003eNIR Auxiliary Light:u003c/strongu003eu003cbr /u003en6° FOV, 100m Illumination Distanceu003c/pu003enu003cpu003eu003cstrongu003eInfrared Thermal Camera:u003c/strongu003eu003cbr /u003en640×512 Resolutionu003cbr /u003enf/1.0u003cbr /u003en53mm Format Equivalentu003cbr /u003enUncooled VOx Microbolometeru003cbr /u003enSupports UHR Infrared Image modeu003c/pu003en

Longer Flight Time, Robust Protection

u003cpu003eWhen fully charged, Matrice 4D/4TD delivers an impressive flight time of 47 minutes at a speed of 15 m/s, achieving a remarkable 37% increase in operation time. At a radius of 10 km, these drones provide 18 minutes of operation. Both models are designed to endure harsh conditions with an impressive IP55 dust and water resistance rating.u003c/pu003en

Obstacle Sensing for Safe Operation

u003cpu003eThe Obstacle Sensing Module for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.u003c/pu003en

Request for a Quote

Your journey into the extraordinary begins here. Share your details for a personalized DJI Matrice 4TD Standalone Version quote and let your imagination soar.
