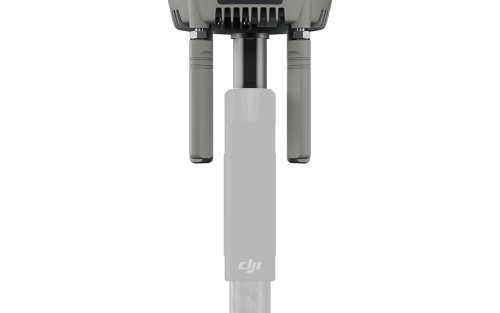

The D-RTK 3 Multifunctional Station has high-performance antennas and receiver modules that can track and process data from prominent worldwide satellite navigation systems, while also supporting various data transmission links. This device can function as a base station, offering centimeter-level positioning for many drones concurrently or enhancing the operational range of drones and DJI Dock 3 in relay station mode. The new rover station mode, in conjunction with the DJI Enterprise app and DJI Terra, offers a robust solution for high-precision aerial surveying, guaranteeing secure and accurate operations.

Relay Station Mode : Break Through Limitations

In metropolitan environments, valleys, or difficult DJI Dock 3 locations with numerous barriers, activate the D-RTK 3 in Relay Station Mode and place it at an elevated position, or alternatively, deploy the D-RTK 3 Relay Fixed Deployment Version directly. This configuration improves the video transmission range for the Matrice 4/4D series, extending operating coverage to 25 kilometers.

The D-RTK 3 facilitates obstruction detection with the Matrice 4 Series, enabling real-time assessments of obstructions and signal integrity among the relay station, remote controller, and drone. Operators can modify the drone’s position according to instructions from the remote controller to guarantee excellent communication quality.

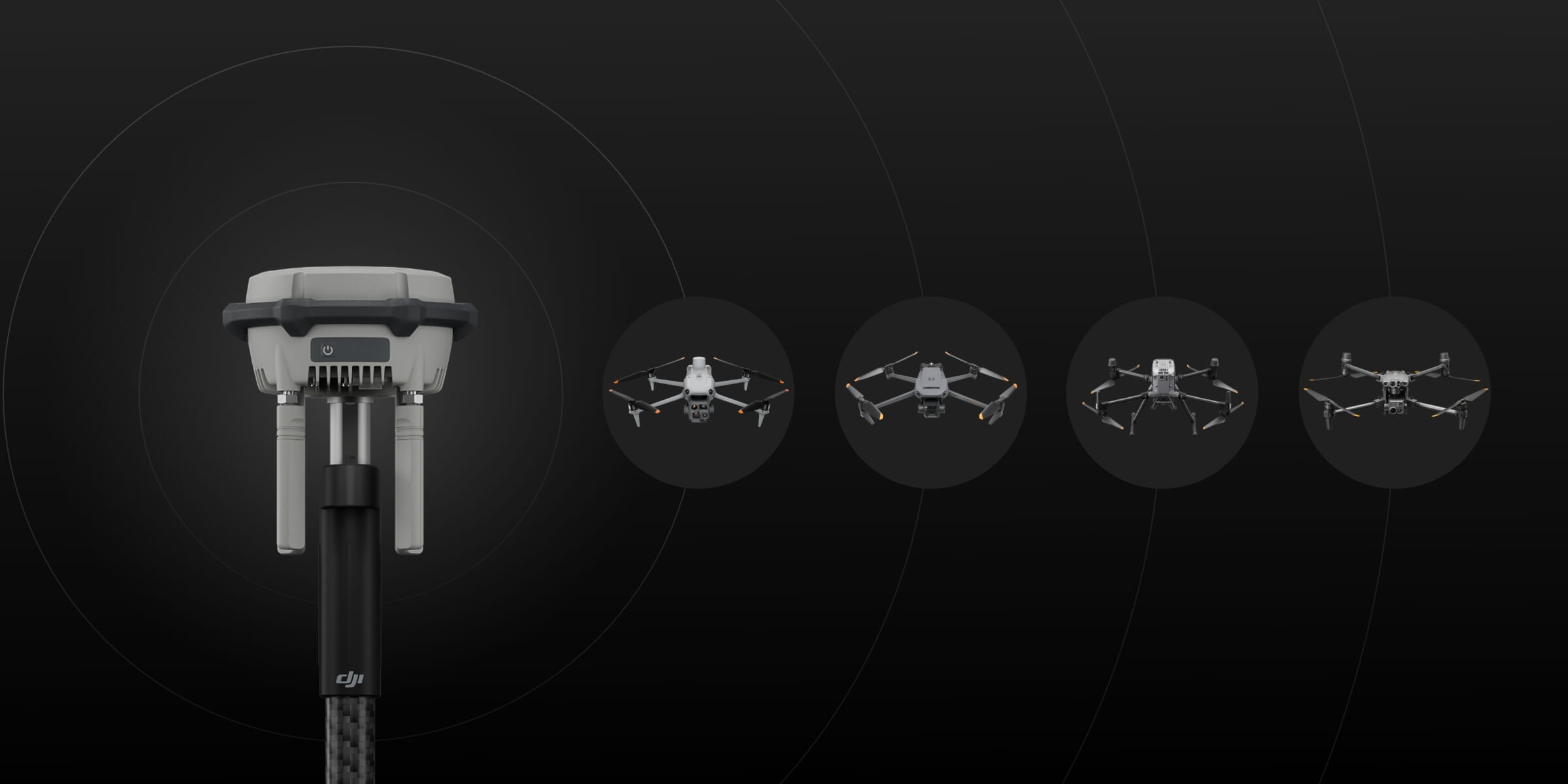

The D-RTK 3 is compatible with the new O4 Enterprise video transmission system. Furnished with four exterior directional antennas, it attains a maximum RTK coverage range of 15 km in base station broadcast mode, while maintaining reliable signals in all directions. Operators require the installation of a single D-RTK 3 Multifunctional Station, necessitating no further configuration, hence enabling many drones to connect to the base station for centimeter-level positioning.

D-RTK 3 functions not only as a base station but also as a rover station for the collection of control point coordinates, thereby augmenting the accuracy of UAV aerial surveys and strengthening survey precision.

Adaptable to Various Environments

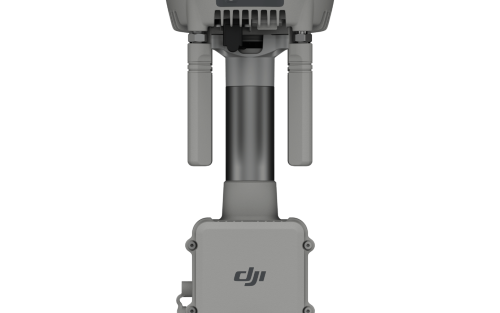

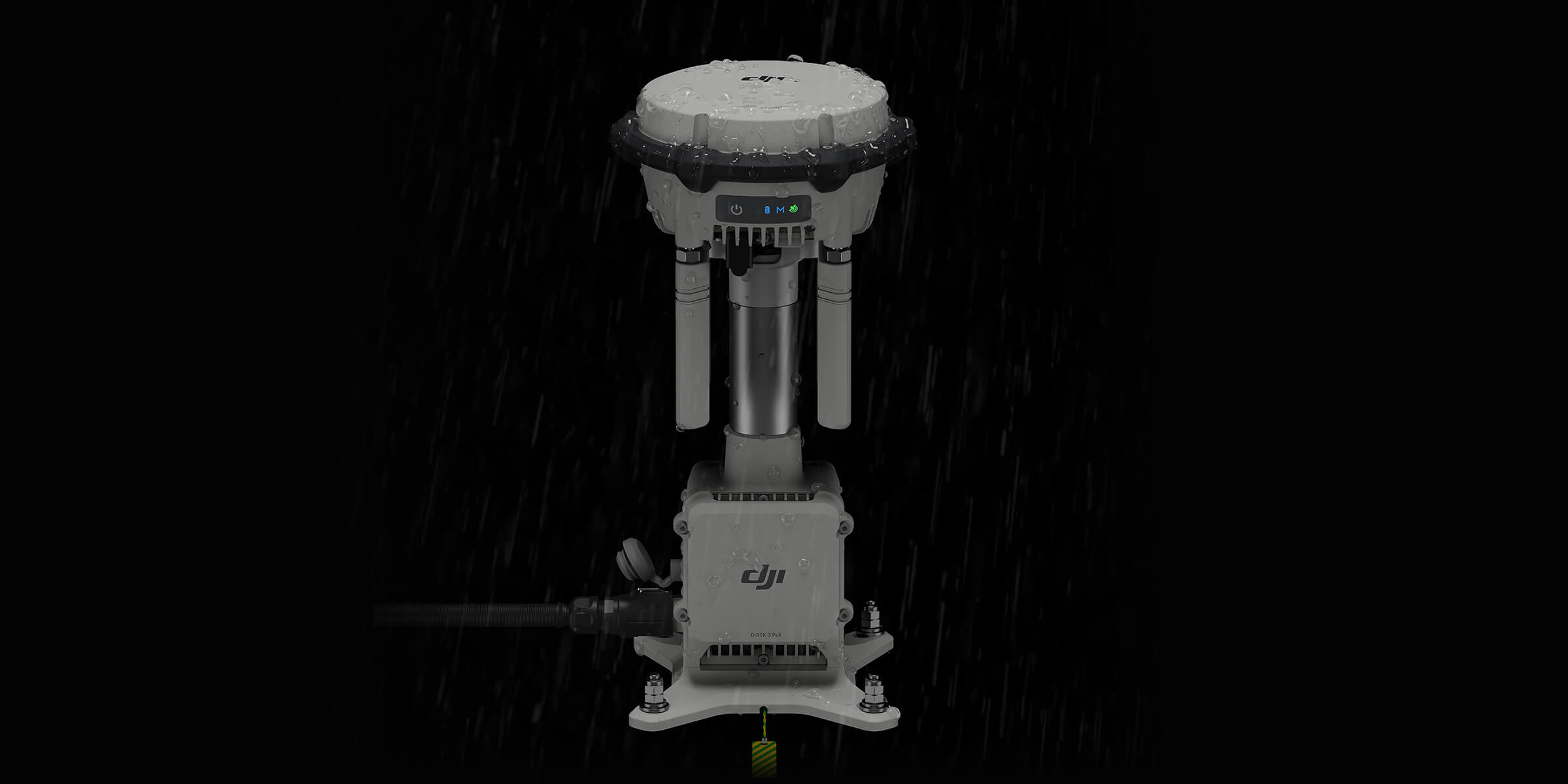

The Fixed Deployment Version provides outdoor, maintenance-free functionality and versatility across many situations. Towers, utility poles, parapet walls, and several other vertical structures can host it, accommodating a variety of situational requirements. Furthermore, it accommodates power supply from DJI Dock 3 or external PoE sources, facilitating long-distance deployments.
